Ecotekk offer a comprehensive range of energy saving windows and doors, including:

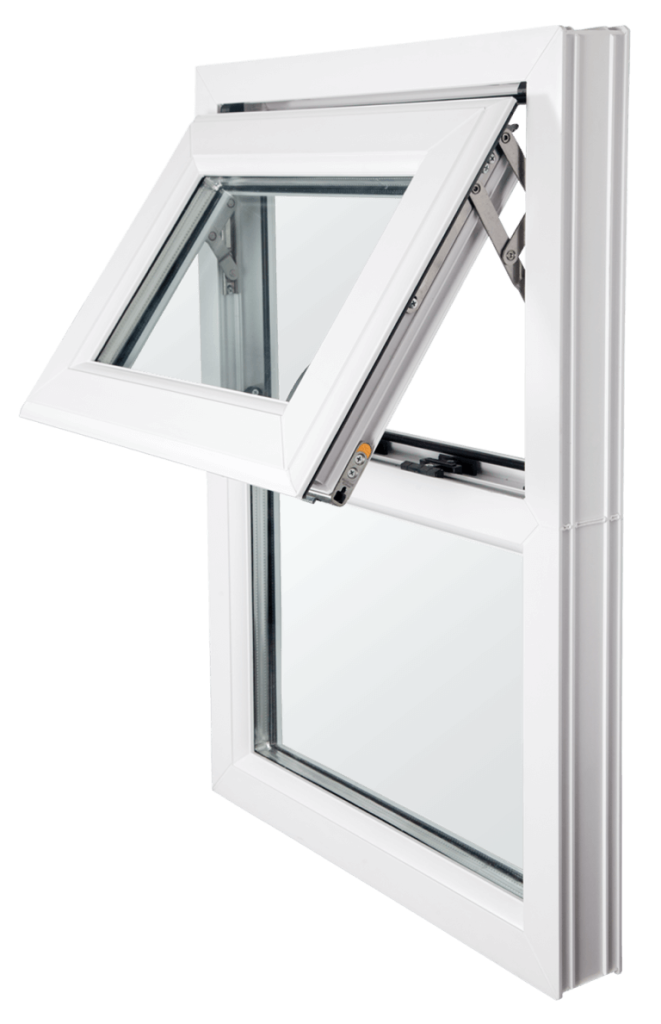

Casement Windows
Flush casement
Sliding sash (double glazed inly)
PVC doors
Patio Doors (double glazed only)
Composite doors
Porches
Conservatories
Orangeries
Fascias soffits and guttering
And more
System profile, glazing, thermal performance, security and sustainability.
From windows to doors to conservatories and garden rooms, top quality PVCu profile, glazing, thermal performance, security and sustainability is at the heart of Formula One products.
The Concept
All our frames are manufactured using high impact, high performance PVCu. Fully sculptured, our Ideal 70 profile delivers exceptionally clean and slim sightlines and the flexibility and subtlety for use in retail, new build and specification sectors.
All frames are fusion welded and NOT screwed together, ensuring better cohesion and corrosion stability. The main profile depth of 70mm with integrated five chambers (front to back) is at the core of the system. All outer frame PVCu walls are approaching 4mm thickness and incorporate two chambers either side of the reinforcement chamber, preventing thermal bridging and providing superb thermal insulation.
PVCu profiles are available in Rosewood, White and Golden Oak as standard and can be produced to give a choice of internal and external finishes. Other colours are available to order, including White and Black finishes
Conforming to BS EN 12608:2003, the system ensures excellent energy efficiency, achieving an ‘A & B’ grade rating.
Design highlights and benefits include:
- Five chamber, 70mm energy efficient design.
- Internal Glazing Beads for extra security and meets weather tightness standard BS 6375.
- A low-line PCE Co-Extruded Gasket providing outstanding weather performance whilst complementing the elegant sightlines. Severe weather rating for windows and doors openings and glazing is achieved by double seal using TPE (Themoplastic Elastomer) gaskets, fusion welded at each corner to eliminate shrinkage, to BS 4255-1 and BPF 345/2.
- Deep drainage furrow.
- Profile thickness for firm hardware anchoring.
- Profile specific galvanised steel reinforcement to BS EN 10346:2009.
- Glass units are “Argon” gas filled super spacer, Warm edge technology double glazed units tested to BS EN1279-2& 3 /BS EN 12150.
Glazing & Efficiency
All Formula One glazed units are Argon gas-filled and benefit from super spacer, warm edge technology.
Our standard double glazed units are ‘A’ rated and tested to BS EN1279-2& 3 / BS EN 12150. They offer a net energy gain of 2KWH/m2/per year to the household.
Our standard window and door glazing specification starts with affordable, efficient ‘A’ rated double-glazed units, whilst upgrade options offer the choice of higher energy efficiency and specialist glazing effects.
Glazing options available include:
Upgrades to Triple glazed units to an Energy Rating of ‘A++’
Specially coated double or triple-glazing that reduces solar loss/gain
Glazing styles including Frosted glass, Etched glass, Stained glass, Georgian bars and Leaded glass.
In very large glazed areas like conservatories, thermal loss and solar gain become particularly important to ensuring comfortable year-round use. So in addition to the 25mm (standard) polycarbonate roof, we offer a 40% thicker 35mm option too.
A-G
Rating Value
All Formula One windows offer “A” rated performance as standard. Upgrade options can increase this to ‘A+’ or ‘A++’. Building regulations currently stipulate a minimum requirement of “C” (or a U-Value of 1.6 w/m2K).
U-Value
Thermal Transmittance
This indicates the amount of heat energy transmitted through a door or window, set out in watts per metre2 per degree Kelvin. The lower the U-Value, the less energy is lost, and the more efficient and economical the unit.
G-Value
Solar Factor
This represents the amount of solar energy that is gained through the window. The higher the value, the more energy gained and the greater the saving.
L-Value
Effective Air Leakage
This is the amount of air that permeates through the window weather seals, also a contributing factor to the Rating Value above.
A / 28mm ENERGY
SECURE
IMPORTANT ENERGY AND NOISE PERFORMANCE:
U Value (The Measure of thermal performance) = 1.5
Noise Reduction Qualities = -31db
MAKE – UP SPECIFICATION:-
- 70mm Depth Frame
- 60mm Outer frame height
- Glazing element is Pilkington KS Softcoat

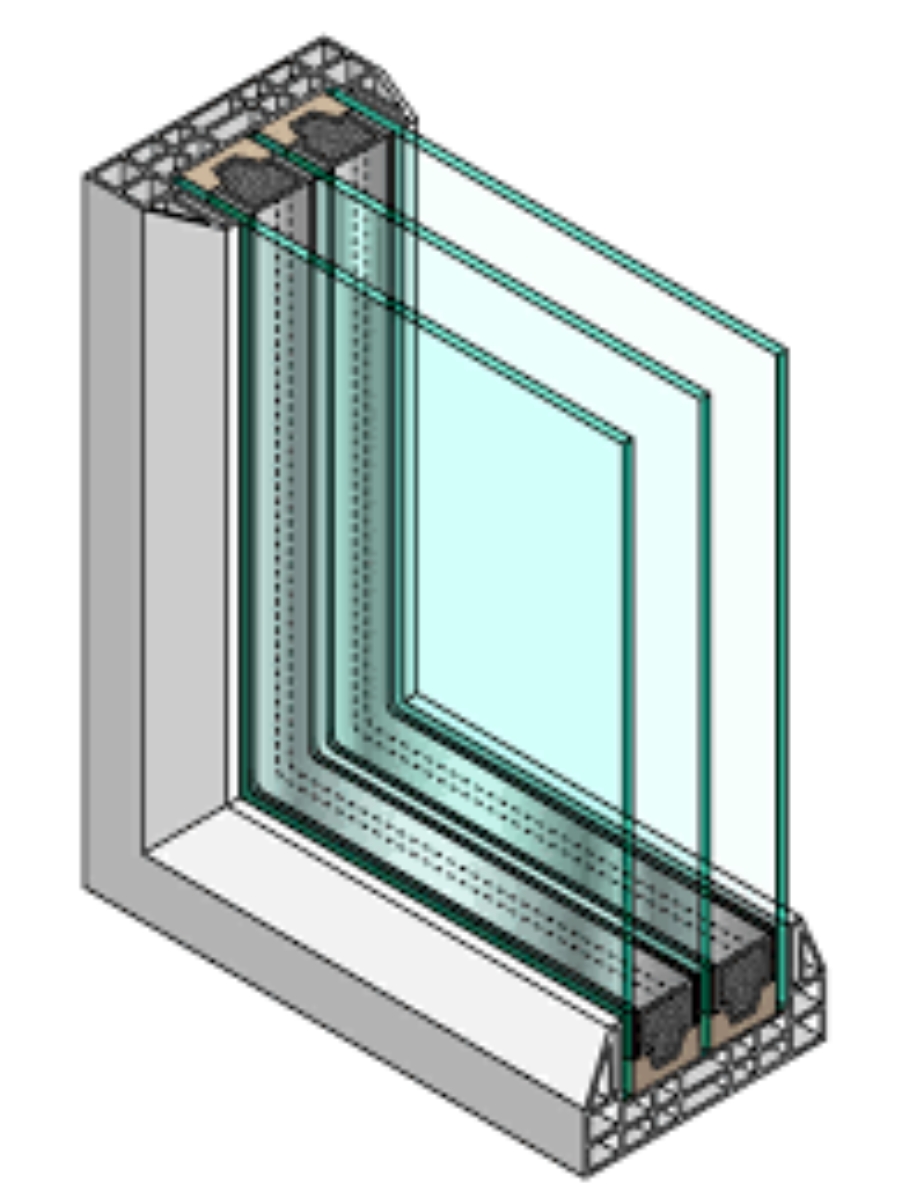

- 4mm Annealed outerpane / 20mm super spacer / 4mm KS Softcoat inner pane
- All Glazing units are compression gap sealed and Argon Filled
A+ / 36mm ENERGY SECURE
IMPORTANT ENERGY AND NOISE PERFORMANCE:
U Value (The Measure of thermal performance) = 1.2
Noise Reduction Qualities = -32db
MAKE – UP SPECIFICATION:-
- 70mm Depth Frame
- 60mm Outer frame height
- Glazing elements are Pilkington Optiwhite & KS Softcoat
- 4mm OptiWhite outerpane / 12mm super spacers /
- 4mm KS Softcoat centre & inner pane
- All Glazing units are compression gap sealed and Argon Filled
FLUSH SASH CASEMENT
Read More
As a fully sculptured system, designed specifically for the UK and Ireland, Ideal 70 offers a great match to period properties in its own right. The aluplast Flush Sash builds on this foundation with additional period detailing including a deep bottom rail, dummy sash options and the option to replicate a 90o traditional mechanical joint.
MAKE – UP SPECIFICATION:-
- 70mm five chamber system
- A++ WER rating and u-values as low as 1.2W/m2K
- Fully sculptured suite of profiles provide an end product mirroring sightlines from fixed lights to opening sash
- Standard 24mm all the way through to flush fitting 40mm beads suitable for the best performing triple glazed sealed units
- Flush option
- Premium surface finish
- Extensive range of woodgrains colours and foils including flat colour options
- Extruded using ecotech our pioneering recycled content system
- A 23mm rebate with an 8mm cover gives optimum weathering performance
- Can be manufactured to PAS24, Part Q and Secured by Design
